C14 IEC Plug

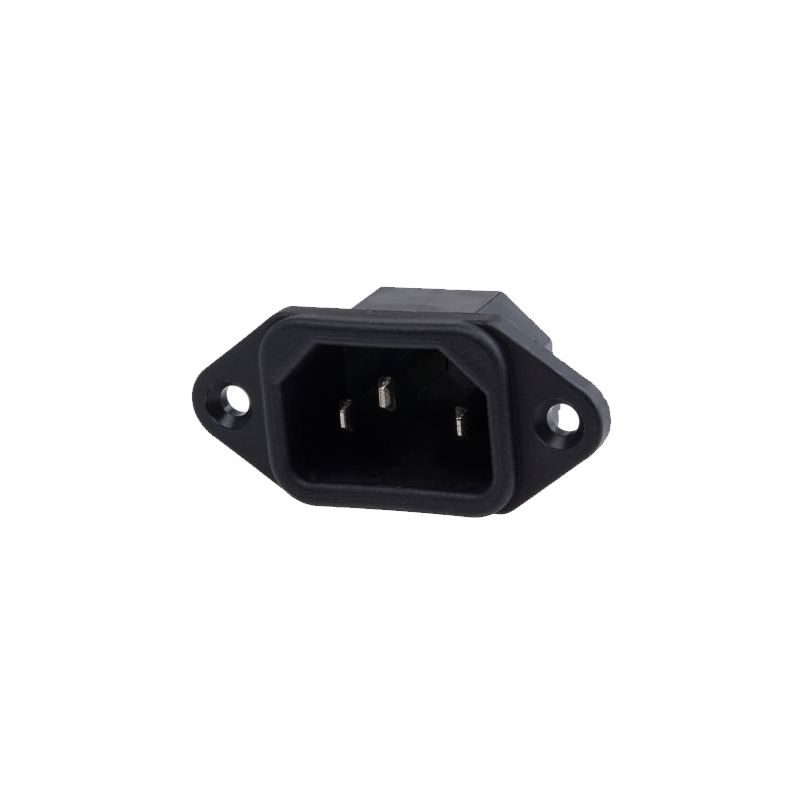

10A Flange Fixing Plug (C14)

Durabel 10 Amp C14 flange mount panel plug with 6.3mm spade terminals, maximum panel thickness 2mm. Suitable for many mains power input applications.

• 250V rated, connection by 6.3mm (1/4 in) receptacles
• Rated at 10 Amps
• Resistance withstand voltage 2000 Vac for 1 minute
• Depth 33mm, fixing hole diameter 3.5mm
• Use insulating boot stock no. 526-0724

Note

All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. Their operating temperature is -40°C to +70°C
